An implementation of the Ray Tracing in One Weekend series in the Odin programming language, extended with a live Dear ImGui docking UI, scene editing, and a GPU compute-shader path.

• CPU path tracer — multi-threaded, BVH-accelerated, progressive tile rendering
• GPU path tracer — Vulkan compute shader with progressive accumulation (-gpu / -backend gpu)
• Backend abstraction — pluggable RenderBackendApi vtable; CPU and Vulkan backends
• Dear ImGui docking UI — native docking, undockable panels, menu bar, ImGui Metrics window
• Live preview — Raylib window with real-time texture upload as tiles / samples complete
• Scene editor — interactive 3D viewport; add, move, and delete spheres; three material types
• Scene-load light safety — imported scenes with no emissive materials and black/missing background auto-fallback to white background
• Cross-platform — Linux (Vulkan GPU path), macOS/Windows (CPU fallback)

• Odin compiler (with full vendor collection including Raylib)
• A C++ linker (clang++ or g++ on Linux/macOS, MSVC on Windows) — required to link the Dear ImGui static library
• Python 3 — used once by make imgui to build the Dear ImGui static library

Using the Makefile (recommended):

# One-time: build the Dear ImGui static library (required after first clone or submodule update)
make imgui

make debug    # Debug build → build/debug
make release  # Optimized release build → build/release

Manual build:

mkdir -p build
odin build . -collection:RT_Weekend=. -debug -out:build/debug

Release builds use -o:speed -no-bounds-check and disable profiling/verbose output (-define:PROFILING_ENABLED=false -define:VERBOSE_OUTPUT=false). Use ./build/release to run the release binary.

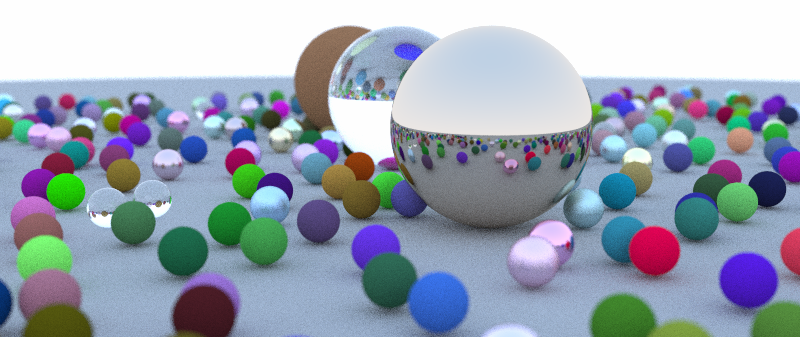

# CPU render (default): 800×450, 10 samples, 10 spheres
./build/debug

# Or use the release binary for faster rendering
./build/release

# Custom resolution and sample count
./build/debug -w 1280 -h 720 -s 50

# GPU compute shader path (Vulkan)
./build/debug -gpu -s 100
# or equivalently:
./build/debug -backend gpu -s 100

# All flags
./build/debug -w <int> -h <int> -s <samples> -n <spheres> -c <threads> [-gpu] [-backend cpu|gpu]

.
├── main.odin               Entry point — CLI parsing, scene setup, launches editor
├── core/                   Shared types: SceneSphere, CameraParams, MaterialKind, Texture
├── util/                   CLI args, system info, Xoshiro256++ RNG, native file dialogs
├── raytrace/               Core path tracer (CPU + GPU)
│   ├── camera.odin         Parallel render session, tile dispatch, start_render_auto
│   ├── hittable.odin       Sphere/Quad, AABB, recursive + flat BVH
│   ├── material.odin       Lambertian, Metallic, Dielectric scatter
│   ├── vector3.odin        Vec3 math, ray, ray_color_linear
│   ├── render_backend.odin RenderBackendApi vtable, RenderBackend, backend helpers
│   ├── cpu_backend.odin    CPU tile renderer as a RenderBackend
│   ├── gpu_backend_adapter.odin  Wraps GpuRendererApi as a RenderBackend
│   ├── gpu_types.odin      GPUSphere, LinearBVHNode, GPUCameraUniforms
│   ├── gpu_backend_vulkan.odin  Vulkan compute backend (VulkanGPUBackend, VULKAN_RENDERER_API)
│   ├── gpu_renderer.odin   GpuRendererApi vtable + create_gpu_renderer factory
│   ├── raytrace.odin       setup_scene (default scene), write_buffer_to_png/ppm
│   ├── scene_build.odin    build_world_from_scene_entities
│   └── profiling.odin      Zero-cost timing (PROFILING_ENABLED flag)
├── persistence/            Scene + config load/save (JSON)
├── editor/                 Dear ImGui docking UI + scene editor
│   ├── app.odin            App struct, run_app event loop, render lifecycle
│   ├── imgui_rl.odin       Raylib→ImGui platform bridge (NewFrame, Render, Setup, Shutdown)
│   ├── imgui_panel_vis.odin ImguiPanelVis — per-panel open/close bools
│   ├── imgui_panels_stub.odin DockSpace + menu bar + panel stub windows (migration in progress)
│   ├── panel_*.odin        Per-panel draw/update (being migrated to ImGui — see below)
│   ├── ui_*.odin           Legacy Raylib UI infrastructure (removed after migration)
│   ├── core_*.odin         Framework-agnostic logic: commands, history, scene state
│   └── edit_view_*.odin    3D viewport: orbit camera, picking, nudge, input state machine
├── vendor/
│   └── odin-imgui/         Dear ImGui v1.91.7-docking — Odin bindings + static lib
│                           Build with: make imgui  (runs python3 build.py once)
└── assets/
    ├── fonts/              Inter-Regular.ttf (SDF UI text, optional)
    └── shaders/
        ├── raytrace_vk.comp      Vulkan GLSL 450 compute shader (GPU path tracer)
        ├── raytrace_vk.comp.spv  Pre-compiled SPIR-V (committed; rebuild with `make shaders`)
        └── sdf.fs                SDF text rendering shader

raytrace/render_backend.odin defines a unified RenderBackendApi vtable that both CPU and GPU renderers implement. The editor and headless paths use this interface exclusively — no backend-specific branching:

RenderBackendApi :: struct {
    tick:           proc(state),              // advance one unit of work
    readback:       proc(state, out: [][4]u8), // copy pixels (gamma-corrected RGBA)
    final_readback: proc(state, out: [][4]u8), // blocking readback for last sample
    get_progress:   proc(state) -> f32,        // 0.0–1.0
    get_samples:    proc(state) -> (int, int), // (current, total)
    get_timings:    proc(state) -> (i64, i64), // (dispatch_ns, readback_ns)
    reset:          proc(state),               // restart without rebuild
    finish:         proc(state, session),       // join/cleanup
    destroy:        proc(state),               // free memory
}

To add a new backend: implement these procs, declare a MY_BACKEND_API :: RenderBackendApi{...} constant, and add a branch in start_render_auto(). The editor needs zero changes.

Three procs in raytrace/camera.odin manage the non-blocking render lifecycle:

raytrace/gpu_renderer.odin defines a lower-level GpuRendererApi used by GPU-specific backends. gpu_backend_adapter.odin wraps it as a RenderBackendApi so the rest of the codebase only sees the unified interface.

The GPU path uses Vulkan compute shaders via Odin's official Vulkan bindings (import vk "vendor:vulkan"). When create_gpu_renderer fails (e.g. no Vulkan driver), the renderer falls back to the CPU path automatically.

1. BVH built once (build_bvh + flatten_bvh → flat []LinearBVHNode)
2. Image divided into 32×32 tiles; atomic counter dispatches tiles to N threads
3. Each thread has its own Xoshiro256++ RNG; writes to non-overlapping buffer regions

1. Same BVH array uploaded to an SSBO
2. One DispatchCompute(W/8, H/8, 1) per frame — each invocation traces one sample for one pixel
3. Accumulation SSBO divided by sample count on readback; gamma-corrected to [][4]u8

• Built-in example scene: Examples -> Cornell Box (empty) now includes the full Cornell setup (room shell, emissive ceiling light, short/tall inner boxes).
• Scene-file version for regression tests: tests/scenes/cornell_box.json.
• Transform support for scene construction lives in raytrace/transform.odin (Mat4, TRS helpers, and TransformStack).
• Box geometry helper: append_box / append_box_transformed in raytrace/quad.odin.
• Automated checks:
  • tests/aabb_transform_tests.odin validates AABB edge cases and TRS round-trip math.
  • tests/run_tests.sh debug renders smoke, materials, and cornell scenes in headless mode.
