A software (CPU) ray tracer written from scratch in Odin, using core:math/linalg for vector math and vendor:raylib purely as a pixel-buffer display surface — every ray/sphere/material calculation is hand-written.

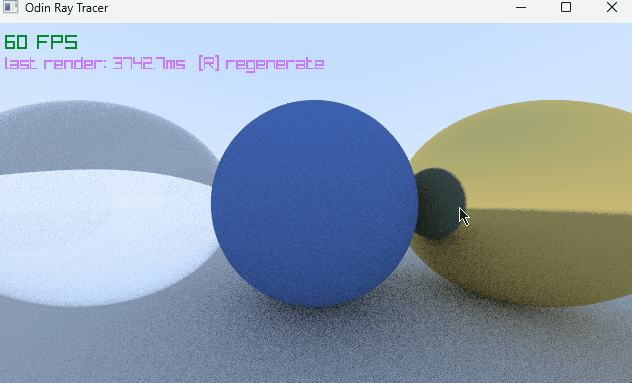

Press R while the window is focused to reshuffle the scene and re-render. The console prints render time for every frame (see Performance).

This is a portfolio piece, not a production renderer. The goal was to write idiomatic Odin — not C with Odin syntax — so the code deliberately shows off:

• explicit allocators passed as parameters, not grabbed off context implicitly
• a growing arena (core:mem/virtual) for per-frame scratch memory
• a tracking allocator wrapping the permanent heap allocations, with a real leak report printed on exit
• multi-return error handling ((result, Render_Error), (rec, ok)) instead of panics or a global "last error"
• Odin's native map and [dynamic] types for the scene graph

src/
  types.odin    Vec3 alias, Ray, Material, Sphere, Scene, Render_Error
  scene.odin    scene_init/destroy/add_*, demo scene construction
  camera.odin   simple pinhole camera -> ray generation
  material.odin Lambertian / Metal / Dielectric scatter functions
  render.odin   sphere intersection, recursive ray_color, render_scene
  main.odin     raylib window, arena + tracking allocator lifecycle

Scene is intentionally simple: spheres: [dynamic]Sphere (array-of-structs) plus materials: map[string]Material. Spheres store a material_id: string key instead of embedding a Material or a pointer to one. Trade-off, stated plainly:

• Pro: many spheres can share one material record, materials can be edited or hot-swapped by name without touching every sphere, and the scene reads like data ("left" -> Dielectric) instead of an opaque handle table.
• Con: a string-keyed map hash-lookup per hit is slower than an integer index into a slice. At the sphere counts here (single digits to low hundreds) it's not measurable; at tens of thousands of primitives, this is the first thing to change (swap material_id for an integer index into a []Material slice built once at scene-load time).

hit_scene is a flat linear scan over scene.spheres — no BVH. Same logic: correct and simple beats a tree structure the reader has to trust, until the scene is large enough that O(n) actually shows up in the frame time. That threshold and the intended fix (a BVH keyed on core:container or a manual binary tree over an [dynamic]AABB) are noted in Next steps rather than built speculatively.

Two allocators, two different lifetimes, used on purpose instead of one allocator for everything:

1. Permanent allocator (main.odin): the real context.allocator, wrapped in a mem.Tracking_Allocator. Scene data (the [dynamic]Sphere, the map[string]Material, the pixel buffer) lives here for the process lifetime and is torn down with explicit defer delete(...) / scene_destroy calls. On exit, track.allocation_map is walked and any surviving entries are printed as leaks — this is a real check, not an assertion of "no leaks" by assumption.

2. Per-frame arena (core:mem/virtual, growing arena): every call to render_scene receives frame_allocator explicitly and sets context.allocator = frame_allocator / context.temp_allocator = frame_allocator for the duration of that call only — the override never leaks out to the caller's context. At 640x360 @ 16 samples/pixel that's ~3.7M primary + scattered ray evaluations per frame; routing their scratch allocations through an arena and reclaiming everything with a single free_all(frame_allocator) on the R key is a lot cheaper than individually freeing each one, and it's impossible to leak scratch memory by forgetting a delete() somewhere in a hot recursive function.

No panics, no global "did the last call fail" flag. Every fallible function returns Odin's native multiple values:

render_scene :: proc(scene: ^Scene, cfg: Render_Config, pixels: []u8,
                      frame_allocator: mem.Allocator) -> Render_Error

hit_scene :: proc(scene: ^Scene, r: Ray, t_min, t_max: f32) -> (rec: Hit_Record, ok: bool)

material_scatter :: proc(mat: Material, r_in: Ray, hit: Hit_Record) -> (result: Scatter_Result, ok: bool)

Render_Error is a closed enum (None, Invalid_Dimensions, Empty_Scene, Missing_Material, Buffer_Too_Small) checked at the call site in main.odin, so adding a new failure mode is a compiler error at every switch that doesn't handle it, not a silent if err != nil that keeps compiling.

Requires the Odin compiler on PATH (raylib bindings ship with the compiler under vendor:raylib, no separate install needed on Windows).

build.bat            :: debug build, -debug
build.bat release    :: optimized build, -o:speed -no-bounds-check
build.bat clean       :: remove build artifacts

Run the resulting raytracer.exe. Controls:

Numbers below are from the render-time line the app prints to the console every frame (fmt.printfln("rendered %dx%d @ %d spp in %.1fms", ...)) and from track.allocation_map on exit. Fill in with your own hardware — these are placeholders until measured on the target machine:

To reproduce: run build.bat release, launch raytracer.exe, read the render time printed to the console (and shown on-screen under the FPS counter), and note memory via Task Manager or by adding a print of arena.total_used in main.odin.

Ideas kept out of v1 on purpose, listed here instead of half-implemented:

• BVH over scene.spheres once primitive counts go beyond a few hundred
• Multithreading via core:thread — the render loop is embarrassingly parallel per-row; each row would need its own arena slice to avoid contention on a single arena allocator
• Integer material handles instead of string keys, once the map lookup shows up in a profile
• Denoising / progressive accumulation instead of a single fixed samples_per_px pass
