At its core a vendorable svg → 3D compiler: the level is a top-down 2D
vector document — an extended SVG (strata: attribute namespace) of
splines and closed shapes carrying height fields, materials, and gameplay
tags — and all 3D (terrain, walls, meshes, collision) is derived by a
deterministic, threaded evaluator: fields → world SDF → narrow-band
dual-contoured tri-soup. The editor is a frontend bolted onto that compiler:
a real scrolling/zooming 2D vector editor (all editing) piloting a live 3D
pure preview, Hammer-style. See DESIGN.md.
 |
 |
|---|---|

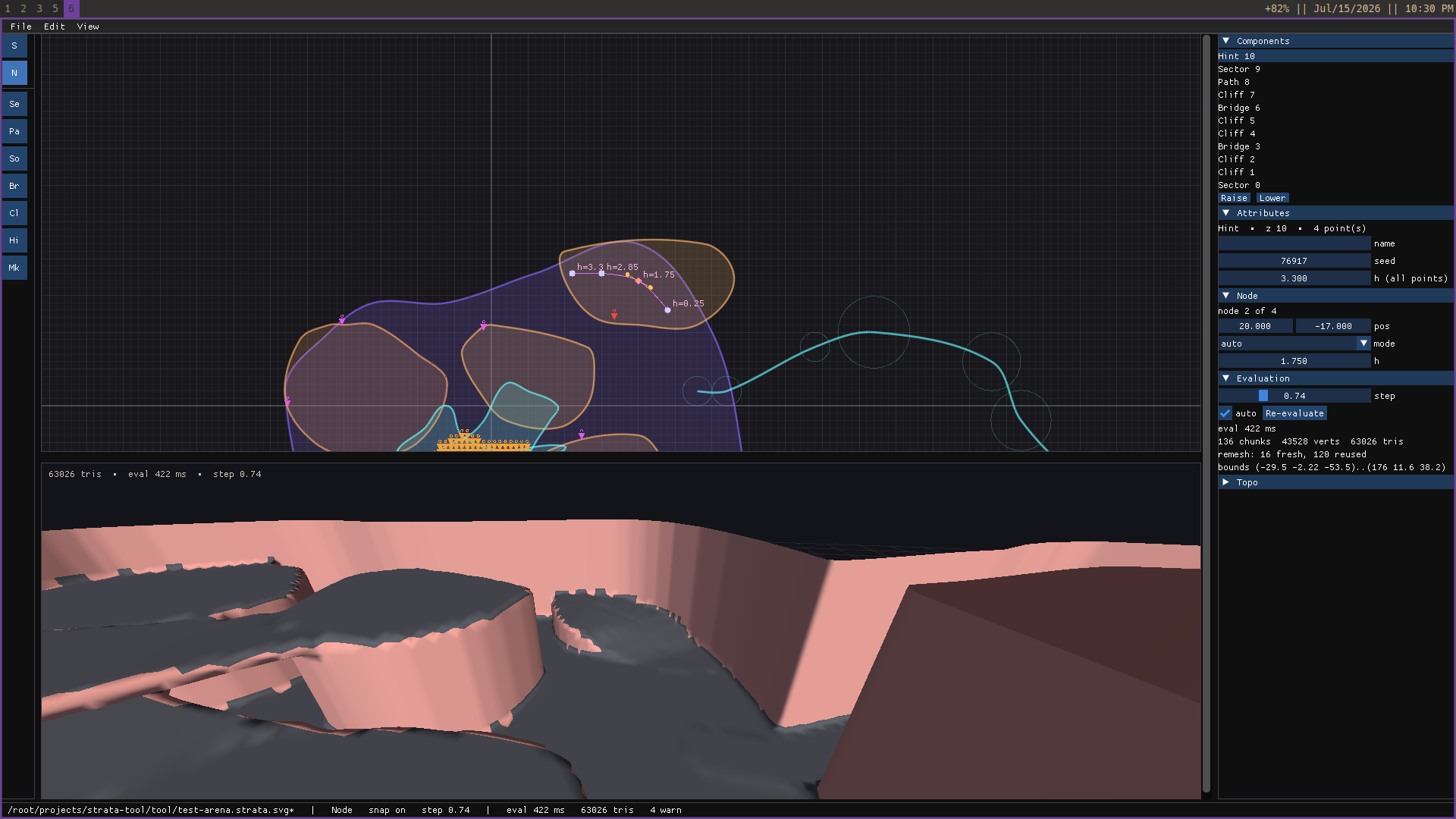

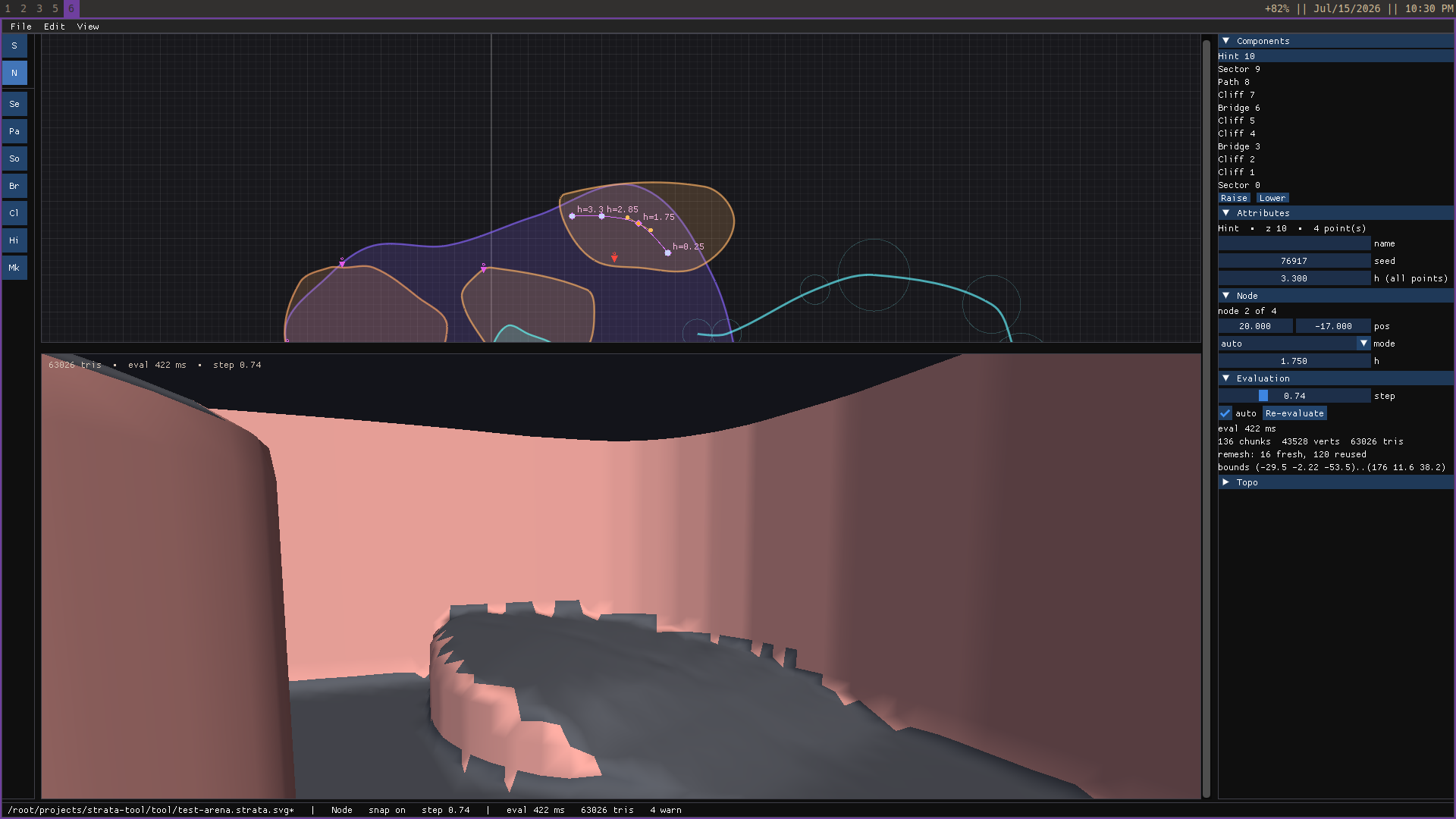

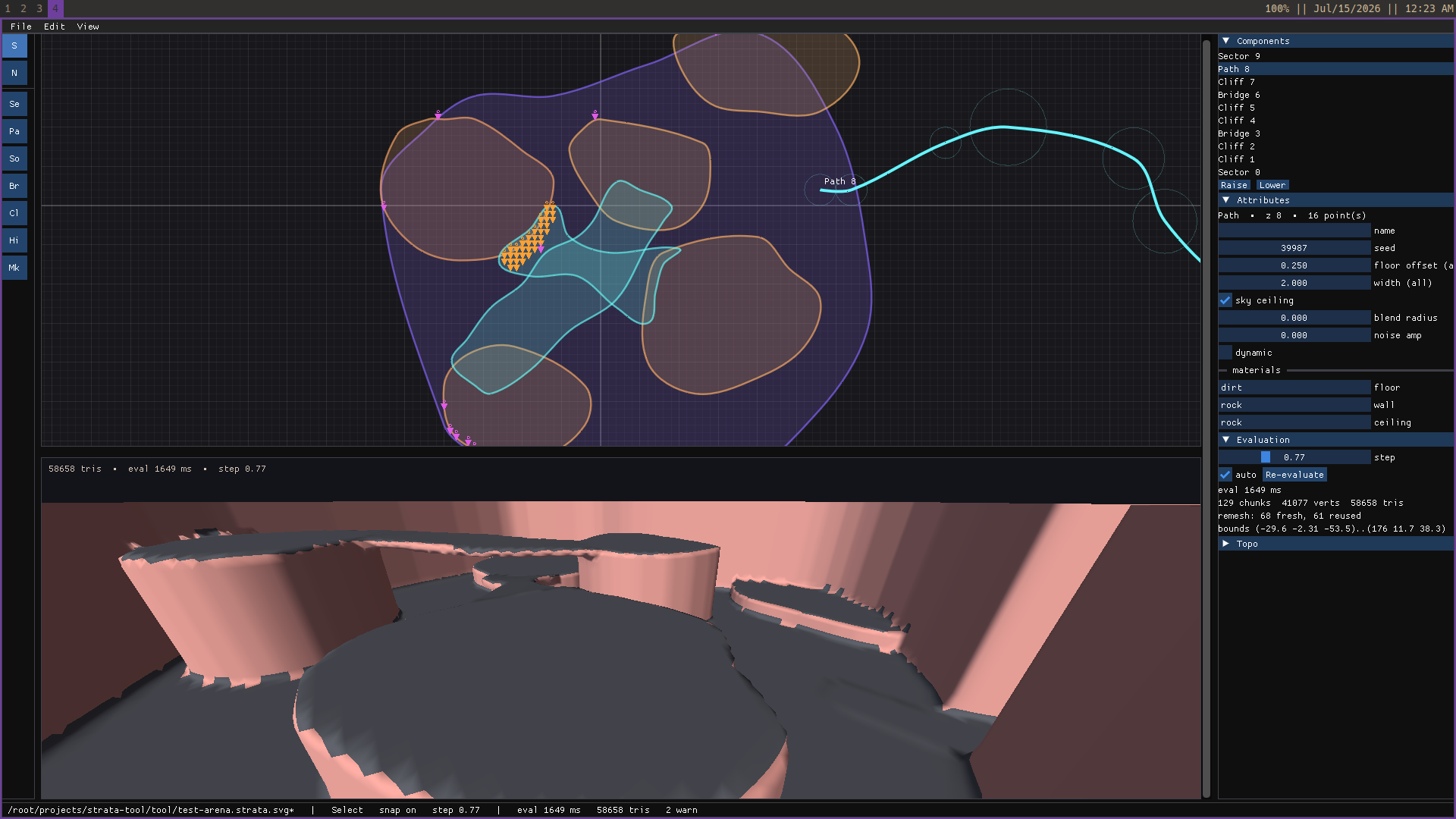

| Fall-line Hint: node heights fold the floor, cliff → ramp | Swept-void Path; all walls/bridges compiler-derived |
Vendor src/engine (plain Odin, core: imports only) and wire the compile
into your load path — levels ship as the .strata.svg files themselves, and
nothing derived is ever written to the player's disk:
doc, ok := engine.document_load_svg(path) // keep doc alive: the world
world := engine.eval_world_build(&doc, step) // holds a ^Document
chunks := engine.mesh_extract(&world) // threaded; tri-soup + mats
// markers/entities: doc.components (.Marker kind), heights via
// engine.surface_height(&world, pos); level metadata: doc.meta (opaque
// lines from <strata:meta>); walkability oracle: engine.topo_data_build.
// Cleanup: mesh_chunk_destroy each chunk, eval_world_destroy,
// document_destroy — in that order.
Determinism is contract: same document + step ⇒ bit-identical mesh
(engine.mesh_checksum), regardless of thread count (STRATA_THREADS
overrides the default of all logical cores).
Diagnostics (parse warnings, eval skips, I/O failures) go through
engine.diag_set_sink(sink, user) — route them into your own logging/UI;
the default sink prints to stderr. Emits happen only from serial phases
(load/save/eval build), never from mesh workers, so sinks need no locking.
Built with Odin; one binary holds the headless CLI (eval / dump / topo) and
the M3 editor: SDL3_GPU 2D vector canvas + live 3D preview, Dear ImGui chrome.
vendor/ (static SDL3, prebuilt imgui lib, glslang, fonts) is copied from the
sibling dymeta-tool checkout.
src/engine/ THE COMPILER (vendorable, core-only). document schema
(document.odin), extended-SVG reader/writer (svg.odin /
svg_write.odin), 2D geometry (geom.odin), harmonic
height-field solver (field.odin), world SDF evaluator —
smooth CSG, noise, cliff fins (sdf.odin), threaded
narrow-band dual contouring + checksum (mesh.odin), topo
oracle (topo.odin)
src/tool/ headless CLI (main.odin), OBJ + sidecar dump for external
viewers (export_obj.odin) + M3 editor: shell/frame loop
(editor.odin), 2D canvas render + edit (canvas2d.odin,
canvas_edit.odin), 3D preview (view3d.odin, camera3d.odin),
sidebar (sidebar.odin), GPU helpers (gpu.odin), earcut
shaders/ GLSL -> SPIR-V, #load'ed into the binary
content/ sample documents + golden outputs (§5)
tests/ golden.sh — build, evaluate every sample, diff vs goldens
tool/ built binary (gitignored)
./build.sh -> tool/strata
tool/strata content/samples/canyon.strata.svg # open the editor
tool/strata eval content/samples/canyon.strata.svg # stats + checksum
tool/strata dump content/samples/canyon.strata.svg # -> canyon.obj + canyon.txt beside the doc
tool/strata topo content/samples/canyon.strata.svg # walkability oracle
tool/strata resave <doc> <out> # writer round-trip
tests/golden.sh # regression suite (--update)
Editor: 1/2 select/node mode, 3–9 draw Sector/Path/Solid/Bridge/Hint/
Marker/Cliff (click points, Enter/first-point closes, Ctrl-click = corner node), wheel
zoom, MMB/Space pan, F fit, X snap, Tab maximize pane, Ctrl+S/Z/Y/D,
F5 re-eval. The 3D pane: RMB orbit, MMB pan, wheel dolly — pure preview.
